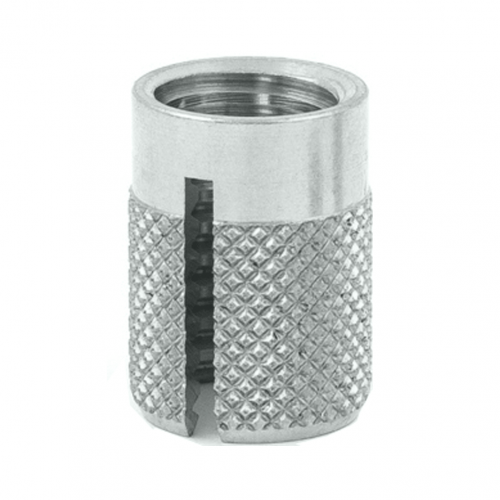

10-32 UNF x 0.375 PlastiSert Press-Fit Threaded Insert For Plastics - Flush - Bottom Slot - 303 Stainless
The 10-32 UNF x 0.375 PlastiSert Press-Fit Threaded Insert For Plastics - Flush - Bottom Slot - 303 Stainless presses into place for fast, easy installation. This non-locking insert has a 10-32 UNF Right-Hand internal thread and is 0.375 long, with Diamond Knurl OD and Bottom Slot. The 35L5C-KVRW-10-05 is also known as E-Z-Lok 240-332-CR or E-Z Press 240-332-CR. Bulk Pricing available.
10-32 UNF x 0.375 PlastiSert Press-Fit Threaded Insert For Plastics - Flush - Bottom Slot - 303 Stainless
PlastiSert Press-Fit inserts are specialty threaded inserts designed to replace molded-in inserts in either thermoset plastics or thermoplastics. Manufactured from Stainless Steel Type 303, these inserts install cold without requiring a precise hole depth. Press-Fit inserts can sharply reduce the cost of moldings and eliminate the need to potentially "chase" threads after molding. This non-locking insert has a 10-32 UNF Right-Hand internal thread and is 0.375 long, with Diamond Knurl OD and Bottom Slot. Order today from Industrial Hardware and Specialties.
Features
- Cold Installation
- Reduce molding costs
- Cut reject waste caused by misaligned and faulty inserts
- Eliminate the need to chase threads after molding
- Install properly without a precise hole depth
Applications:
- Post-molding installation in either thermoset plastics or thermoplastics
Installation:
As the PlastiSert Press-Fit insert is installed, it compresses slightly along the slot. As the fastener is threaded into place, the insert expands and the diamond knurl is pressed into the wall of the hole, securing the insert in place.
| Application | Plastics |
|---|---|
| Material | Stainless Steel Type 303 |
| Insert Style | Non-Locking |
| ID Thread Rotation | Right-Hand |
| ID Thread Standard | ANSI/ASME |
| ID Acronym | UNF |
| OD Thread Rotation | Press Fit (None) |
| OD Thread Standard | Diamond Knurl |
| OD Acronym | Diamond Knurl |
| Flange/Flush | Flush |
| Slot Location | Bottom Slot |
| Flange Diameter | 0.250 |
| Inside Thread | 10-32 |
| Length | 0.375 |
| Drill Size | 0.2500 (1/4) |
| Drill Size | 0.2500 (1/4) |
| Decimal Outside Diameter | 0.2620 |
| E-Z Lock | 240-332-CR |
| Chrislynn Part Number | 9240-332-CR |
-
